What is a geomembrane and Why is it essential for Leakage Prevention?

06 Aug 2026

What is a geomembrane and Why is it essential for Leakage Prevention?

Have you ever noticed the large black plastic sheets lining the bottom and sides of reservoirs, irrigation ponds, landfills, or wastewater treatment ponds?

These plastic sheets are known as geomembranes—synthetic materials specifically engineered to serve as an impermeable barrier.

The primary function of a geomembrane

Its main function is to prevent water, liquids, or chemicals from seeping into the surrounding soil and groundwater. It helps minimize resource loss, reduce the risk of environmental contamination, and improve the long-term safety and reliability of infrastructure.

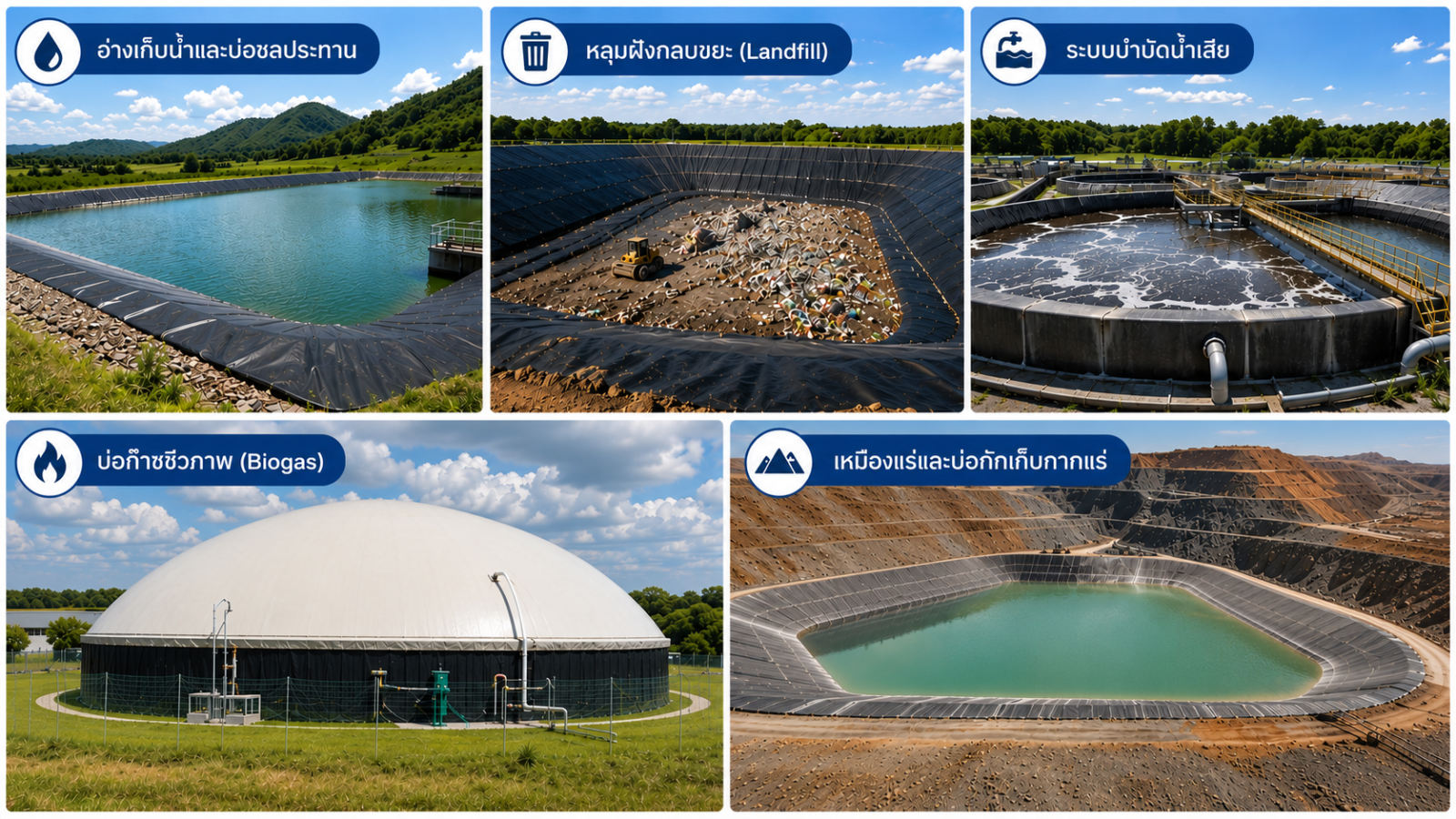

Today, geomembranes are widely used across various industries and applications, including:

  • Reservoirs and irrigation ponds
  • Landfills
  • Wastewater treatment systems
  • Biogas ponds
  • Mining operations and tailings storage facilities

Although geomembranes are usually hidden from view after installation, they play a vital role in ensuring that these structures operate safely, efficiently, and with reduced environmental impact.

Why are most geomembranes made from HDPE?

Geomembranes can be manufactured from several materials, including HDPE, MDPE, LLDPE, PVC, and EPDM. However, HDPE geomembranes are currently the most widely used option in engineering applications due to their suitability for long-term containment and leakage prevention.

Key properties of HDPE include:

  • High tensile and tear strength
  • Excellent resistance to chemicals and corrosion
  • Strong resistance to UV radiation and outdoor weather conditions
  • Extremely low water permeability
  • A long service life of several decades when properly designed and installed

These properties make HDPE one of the primary materials used to manufacture geomembranes for infrastructure projects worldwide.

GRI-GM13: A standard that builds confidence in geomembrane performance

In addition to material selection, product standards are another critical consideration. One of the most widely recognized international standards is GRI-GM13, developed by the Geosynthetic Institute (GSI) to establish minimum requirements for geomembranes.

The standard covers several important performance tests, including:

  • Tensile strength
  • Tear resistance
  • Puncture resistance
  • Stress crack resistance
  • UV resistance and long-term durability

Compliance with GRI-GM13 helps provide confidence that a geomembrane possesses the properties required for long-term use in demanding infrastructure applications.

Note: GRI-GM13 is a standard specifically applied to HDPE geomembrane sheets. However, selecting a plastic resin that has been designed to support these requirements is an important factor in enabling manufacturers to produce consistent, high-quality geomembrane sheets.

High-quality geomembranes start with the right plastic resin

The quality of a geomembrane does not depend solely on the manufacturing process. It begins with selecting a plastic resin that offers the right properties for the intended application.

GC: the only producer in Thailand capable of manufacturing PE grades for geomembranes

InnoPlus by GC HD6699G is a newly developed high-density polyethylene resin specifically designed to produce geomembrane liners.

The grade supports both blown sheet and cast sheet processes, providing an effective material solution for leakage-prevention applications across a wide range of industries.

Key Benefits of HD6699G

✅ Supports the production of geomembranes compliant with GRI-GM13 requirements
✅ High tensile strength and tear resistance
✅ Excellent stress crack resistance
✅ Effective leakage-prevention performance
✅ Suitable for both blown sheet and cast sheet manufacturing processes

With these properties, HD6699G is suitable for producing geomembranes used in reservoirs, irrigation ponds, landfills, wastewater treatment systems, biogas ponds, and other infrastructure applications that demand reliable performance and long-term durability.

Because every critical structure begins with a material you can trust.

For businesses seeking high-performance plastic resin for durable geomembrane production, GC’s specialists are ready to provide advice and recommend the most suitable solution for your requirements.

Click here to learn more.
